ROTECH™ STEERING SYSTEM

ROTECH - X11
T71FC - helm
X34 - 90° bezel
M66 - 11' steering cable

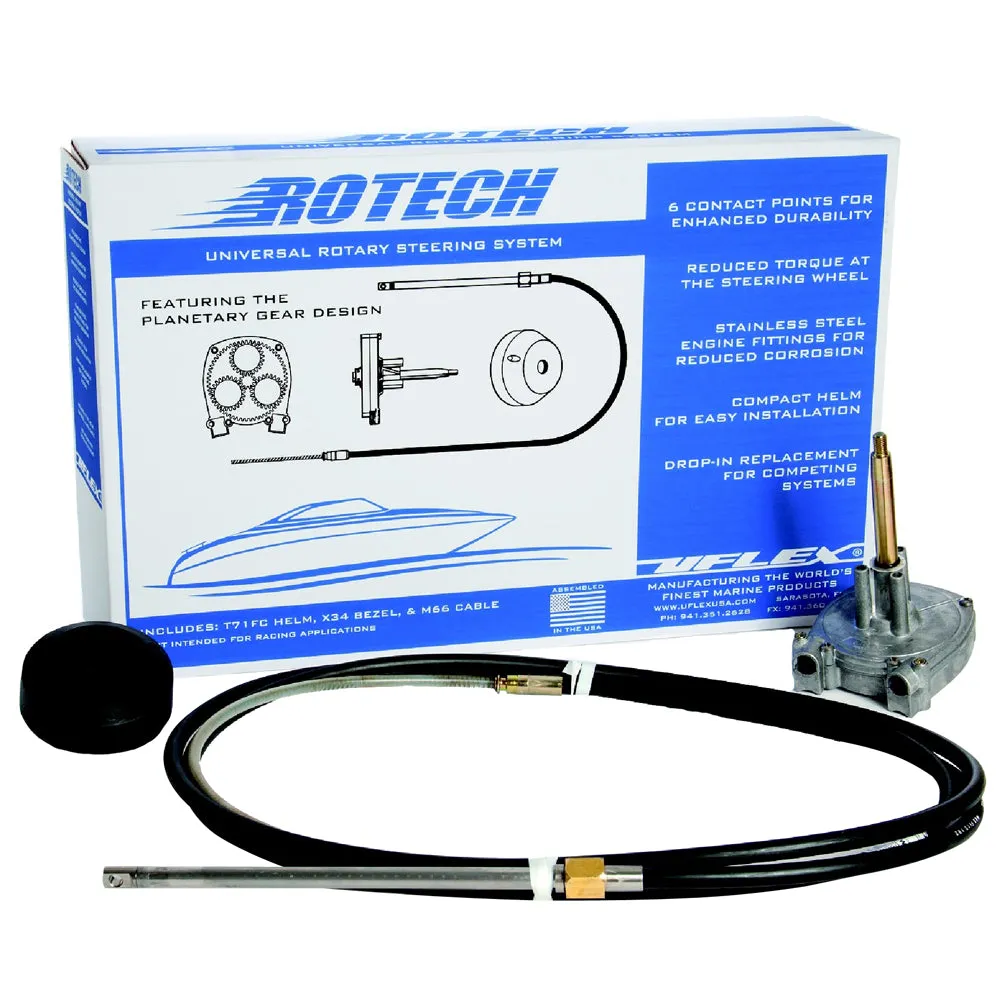

UFLEX ROTARY STEERING SYSTEMS PACKAGED IN A BOX:

A convenient kit form, especially suitable as replacement steering, that includes helm, bezel and cable.

FEATURES AND TECHNICAL SPECIFICATIONS:

• Fast connect, simple installation

• All stainless steel cable output ends

• Corrosion resistant materials

• Particulary suitable where clearance is limited

• Standard 3/4" tapered shaft

• Lock-to-lock steering wheel turns: approx. 3,8

• Stroke: 9" (228 mm)

• Maximum allowable steering wheel diameter: 16" (406 mm)

• Minimum steering cable bend radius: 7.9" (200 mm)

• Minimal feedback

• Compact for mounting

• T71FC steering system is not to be used on boats quipped with engines that exceed the maximum horsepower rating of the boat

• For boats faster than 50 mph the twin cable steering system T72FC is recommended

• Exceeds EN 28848 safety standards

• Exceeds ABYC P17 safety standards

Specifications:

• Cable Length (Feet): 11'
• Box Dimensions: 8"H x 18"W x 29"L WT: 12.65 lbs
• UPC: 702755019435
